README

OpenAPI and AsyncAPI tooling for Laravel applications.

Spectacular gives you two things from the code you already write:

• OpenAPI — Scramble extensions that document spatie/laravel-query-builder filters, sorts, includes and sparse fieldsets, plus pagination parameters, directly from your controller actions — no annotations required.
• AsyncAPI — a generator that turns your Laravel broadcast events into an AsyncAPI 3.0 document, inferring channels and message payloads from the event class itself.

Requirements

• PHP 8.4+
• Laravel 13+
• dedoc/scramble ^0.13.30 (for the OpenAPI extensions)
• spatie/laravel-query-builder ^7.0 (for the query-builder extension)

Installation

composer require bambamboole/spectacular

The service provider is auto-discovered. Publish the config file if you want to customise the defaults:

php artisan vendor:publish --tag=spectacular-config

This writes config/spectacular.php.

OpenAPI

Spectacular ships two Scramble operation extensions, QueryBuilderExtension and PaginationExtension. The service provider registers them for you; add your own through Scramble's native scramble.extensions config.

Query builder parameters

Any action that builds a Spatie\QueryBuilder\QueryBuilder chain is inspected statically, and the allowed operations become documented query parameters:

use Spatie\QueryBuilder\AllowedFilter;
use Spatie\QueryBuilder\QueryBuilder;

class UsersController
{
    public function __invoke(Request $request): AnonymousResourceCollection
    {
        $users = QueryBuilder::for(User::class)
            ->allowedFilters('name', AllowedFilter::exact('email'))
            ->allowedSorts('name', 'created_at')
            ->allowedIncludes('roles')
            ->paginate($request->integer('per_page', 15));

        return UserResource::collection($users);
    }
}

Produces filter[name], filter[email], sort and include parameters — with enums, descriptions and the correct array styling — plus page and per_page from the extension below. Spectacular does not document allowedFields() because it limits selected database columns rather than the fields serialized by a standard Laravel JSON resource. Laravel JsonApiResource sparse fieldsets are handled separately by Scramble.

Filter, sort and include names honour the relevant config/query-builder.php settings, so a customised query-builder config is reflected in the generated document.

Pagination parameters

paginate(), simplePaginate() and cursorPaginate() on a query-builder chain are documented automatically:

• paginate / simplePaginate → a page integer parameter (minimum 1).
• cursorPaginate → a cursor string parameter.
• A per_page-style parameter is derived from a $request->integer('per_page', 15) (or input/query) argument, including its default.

Custom page/cursor names (pageName, cursorName) and the per-page key are read from the call arguments.

To let clients choose between pagination modes, use Spectacular's query builder:

use Bambamboole\Spectacular\PaginationMode;
use Bambamboole\Spectacular\QueryBuilder;

return UserResource::collection(
    QueryBuilder::for(User::class)->apiPaginate(
        modes: [PaginationMode::Default, PaginationMode::Cursor],
        max: 100,
    ),
);

Available modes are Default, Simple and Cursor. Modes default to [PaginationMode::Default]; when several are declared, the first is the default and clients select another with the x-pagination header. The API reference renders that header as a select and includes it in generated and live requests. OpenAPI responses use titled anyOf branches for each declared mode.

per_page defaults to the model's page size. Supplied integers are clamped between 1 and max, which defaults to 100.

Generating the document

php artisan spectacular:openapi                 # print to stdout
php artisan spectacular:openapi --path=openapi.json
php artisan spectacular:openapi --pretty=false  # compact JSON

The command renders the same document Scramble produces, so all of Scramble's own configuration applies.

AsyncAPI

Annotate the broadcast events you want documented with the #[Message] attribute. Spectacular scans the configured paths for events implementing ShouldBroadcast / ShouldBroadcastNow that carry the attribute:

use Bambamboole\Spectacular\AsyncApi\Attributes\Message;
use Illuminate\Broadcasting\PrivateChannel;
use Illuminate\Contracts\Broadcasting\ShouldBroadcast;

#[Message(
    summary: 'User notification was created',
    description: 'Sent when a user receives a notification.',
    tags: ['notifications'],
)]
final class UserNotificationBroadcast implements ShouldBroadcast
{
    public function __construct(public int $userId) {}

    public function broadcastOn(): array
    {
        return [new PrivateChannel('users.'.$this->userId)];
    }

    public function broadcastAs(): string
    {
        return 'user.notification.created';
    }

    /**
     * @return array{notificationId: int, team: string, sentAt: \Carbon\CarbonImmutable, status: BroadcastStatus}
     */
    public function broadcastWith(): array
    {
        return [/* ... */];
    }
}

From an event, Spectacular derives:

• Channels — from the #[Message(channels: [...])] argument, or inferred by invoking broadcastOn() when the attribute omits them. Channel type (public, private, presence, private-encrypted) is detected from the name.
• Message name — from broadcastAs() when present, otherwise the fully-qualified class name.
• Payload schema — from the broadcastWith() @return PHPDoc (array shapes, list<>, array<string, T>, nullable and union types are all understood). When broadcastWith() is absent, the event's public properties are used, mapping scalars, enums, DateTimeInterface and nested objects to JSON Schema.

The #[Message] attribute

#[Message(
    channels: [],          // explicit channel names; inferred from broadcastOn() when empty
    title: null,           // human-friendly message title
    summary: null,         // short message summary
    description: null,     // longer description
    tags: [],              // AsyncAPI message tags
    payload: null,         // reference an external payload schema ($ref) instead of inferring
)]

Broadcast notifications

Use #[BroadcastNotification] on Laravel notification classes that are delivered through the broadcast channel:

use Bambamboole\Spectacular\AsyncApi\Attributes\BroadcastNotification;
use Illuminate\Notifications\Messages\BroadcastMessage;
use Illuminate\Notifications\Notification;

#[BroadcastNotification(
    notifiables: [User::class],
    title: 'Invoice paid',
    summary: 'Sent to users when an invoice is paid.',
    tags: ['billing'],
)]
final class InvoicePaidNotification extends Notification
{
    public function via(object $notifiable): array
    {
        return ['broadcast'];
    }

    /**
     * @return BroadcastMessage&object{data: array{invoiceId:int, amount:int}}
     */
    public function toBroadcast(object $notifiable): BroadcastMessage
    {
        return new BroadcastMessage([
            'invoiceId' => 123,
            'amount' => 4999,
        ]);
    }
}

Spectacular infers notification channels from the notifiables classes. If a notifiable exposes receivesBroadcastNotificationsOn(), that value is used; otherwise the channel defaults to a private placeholder such as private-App.Models.User.{userId}. Pass explicit channels when notifications use custom or dynamic broadcast channels that cannot be inferred.

Webhook events

Webhook documentation is optional and needs bambamboole/laravel-webhooks (install separately); without it, the AsyncAPI document simply contains no webhook channel. Use its #[WebhookEvent] attribute on outbound webhook event classes you want listed in the AsyncAPI document:

use Bambamboole\LaravelWebhooks\Attributes\WebhookEvent;

#[WebhookEvent(
    name: 'invoice.paid',
    title: 'Invoice paid',
    summary: 'Sent when an invoice is paid.',
    tags: ['billing'],
)]
final class InvoicePaidWebhook
{
    public function __construct(public int $invoiceId, public int $amount) {}

    /**
     * @return array{invoiceId:int, amount:int}
     */
    public function webhookPayload(): array
    {
        return [
            'invoiceId' => $this->invoiceId,
            'amount' => $this->amount,
        ];
    }
}

Laravel Webhooks owns runtime event discovery, subscriptions, delivery, signing, retries, caching, and delivery history. Follow the Laravel Webhooks documentation to configure those runtime concerns.

Spectacular limits its webhook role to the generated AsyncAPI channel, message metadata, envelope schema, configured headers, and the spectacular:asyncapi command.

Laravel extensions

By default the document includes x-laravel-* extension fields (channel type, source event class, whether it broadcasts now). Disable them with laravel_extensions => false in the config.

Configuration

// config/spectacular.php
'asyncapi' => [
    'version' => '3.0.0',
    'default_content_type' => 'application/json',
    'info' => [
        'title' => env('APP_NAME', 'Laravel').' AsyncAPI',
        'version' => env('APP_VERSION', '0.0.1'),
    ],
    'laravel_extensions' => true,
    'scan_paths' => [
        app_path('Events'),
    ],
    'webhooks' => [
        'channel' => [
            'key' => 'webhooks',
            'address' => '{webhookUrl}',
        ],
        'headers' => [
            'Content-Type' => ['type' => 'string', 'enum' => ['application/json']],
            'Signature' => ['type' => 'string'],
            'Timestamp' => ['type' => 'integer'],
        ],
    ],
],

Generating the document

php artisan spectacular:asyncapi                  # print to stdout
php artisan spectacular:asyncapi --path=asyncapi.json
php artisan spectacular:asyncapi --pretty=false   # compact JSON

Displaying docs with Lattice

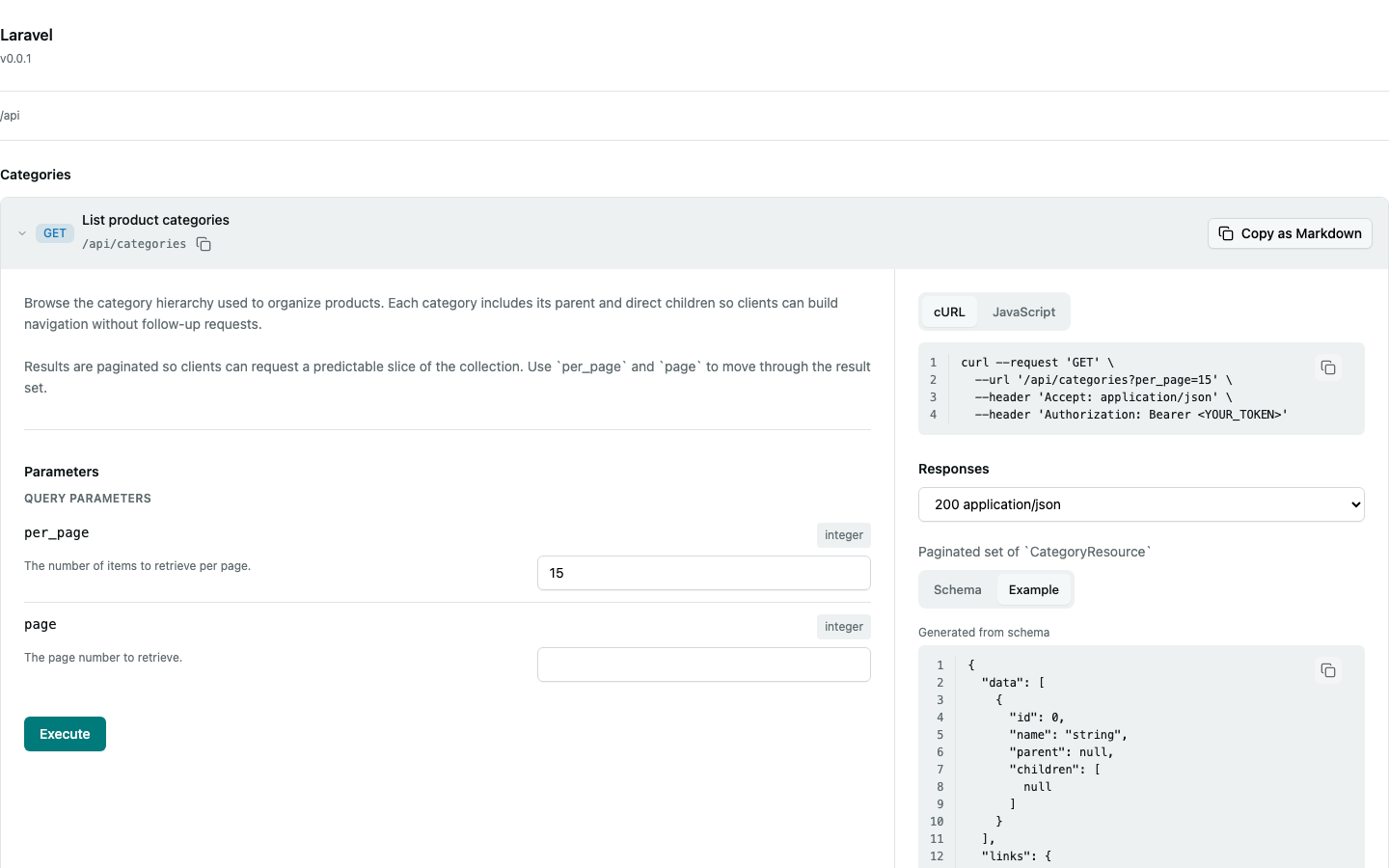

The interactive API reference viewer lives in lattice-php/api-reference, a first-party Lattice component package. It renders any generated OpenAPI document as a browsable reference with a request playground — see the docs page with a live demo:

composer require lattice-php/api-reference

use Dedoc\Scramble\Generator;
use Illuminate\Support\Facades\Cache;
use Lattice\ApiReference\ApiReference;
use Lattice\Core\Attributes\AsPage;
use Lattice\Http\Page;
use Lattice\Ui\PageSchema;

#[AsPage(route: 'docs', name: 'docs', middleware: ['auth'])]
final class ApiDocsPage extends Page
{
    public function render(PageSchema $schema, Generator $generator): PageSchema
    {
        $document = Cache::rememberForever(
            'spectacular.openapi',
            fn () => $generator(),
        );

        return $schema->schema([ApiReference::make()->spec($document)]);
    }
}

Scramble's generator only needs phpstan/phpdoc-parser and nikic/php-parser at runtime (PHPStan itself is a require-dev package of Scramble), so generating the document on request works in production. It still walks your whole app via reflection and AST parsing though, so cache the result rather than regenerating it per request — Cache::forget('spectacular.openapi') on deploy, or a shorter TTL, both work. Gate the page behind middleware (or an env check) if the reference shouldn't be public.

Testing

composer test      # Pest
composer check     # Pint (test), PHPStan, Pest — mirrors CI

The package is developed with Orchestra Testbench; the workbench/ app provides the routes and events exercised by the test suite.

License

Spectacular is open-sourced software licensed under the MIT license.
